The explosive growth of large‑scale AI models has driven an unprecedented rise in power density within data centers. Single‑GPU chip power has exceeded 700 W, while power density per cabinet in AI clusters surpasses 15 kW. Domestic regulations also require the average PUE of data centers to drop below 1.5.
Traditional air cooling can no longer satisfy heat‑dissipation demands. Against this backdrop, liquid cooling has become a mandatory solution. Industry competition has shifted beyond cooling performance itself, focusing instead on coolant reliability, material compatibility, and consistent delivery capacity.
Three Core Challenges for Liquid‑Cooling Projects
Risks in Cooling Medium Selection

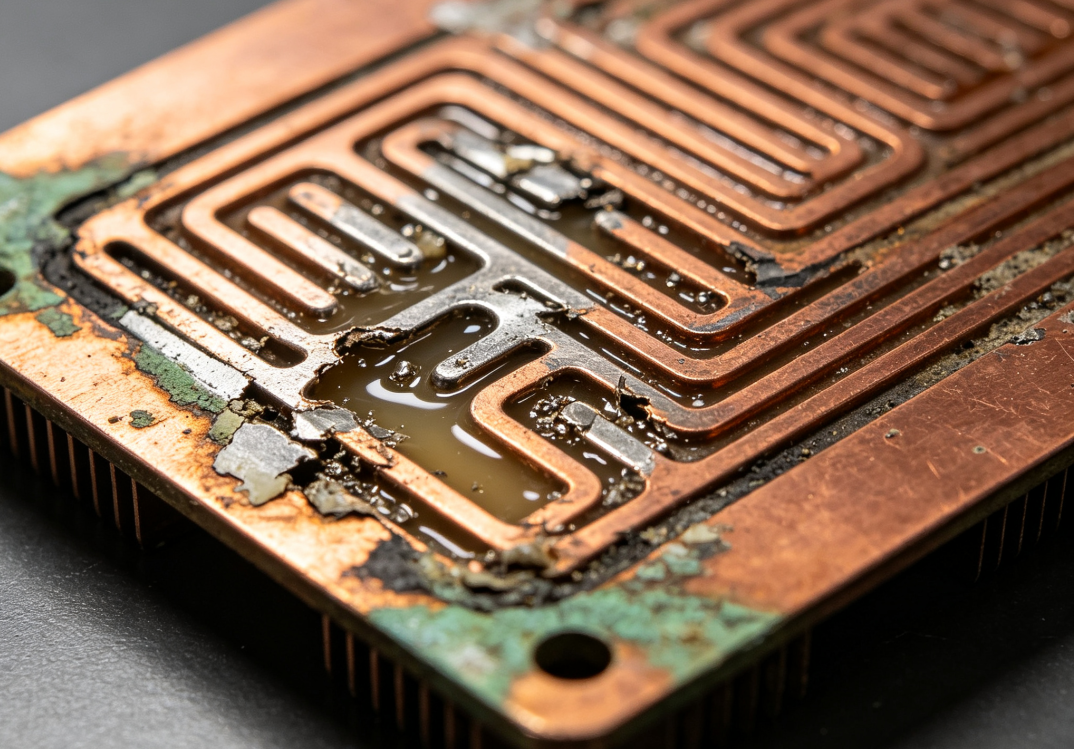

In multi‑material wetted environments, mismatched coolant easily triggers corrosion, precipitation and pipeline blockage. Complex fluid replacement and cleaning procedures may leave residual contamination, resulting in gradual performance degradation.
Thermal Pressure in System Deployment
As AI computing power keeps climbing, retrofitting existing facilities poses high implementation barriers. Challenges lie not only in heat dissipation, but also in adaptation of pipelines, power supply and daily operation & maintenance.
Difficulties in Consistent O&M & Delivery
Multi‑site cross‑regional projects demand stable supply and batch‑to‑batch consistency. Continuous monitoring of coolant conditions and fluid‑replacement cycles are required throughout operation.
Fluorinated Liquids vs. Mineral Oil: Inherent Limitations
Fluorinated liquid and mineral oil are two mainstream immersion‑cooling mediums, yet both carry obvious drawbacks：
Fluorinated liquids: Overall cost is 4‑6 times higher than synthetic oil. Fast volatility pushes up maintenance costs; volatile components raise health and environmental concerns.
Mineral oil: May cause material embrittlement, corrosion and cracking. It tends to oxidize and generate sludge and varnish, offering only 2‑3‑year service life with poor stability.
Targeting core pain points of data‑center liquid cooling and drawbacks of conventional solutions, Amer introduces the innovative C&C Solution: coordinated application of Coating (PCB protective coating) and Cooling (coolant fluid).
Amer Innovative C&C Solution
Liquid‑cooling projects hinge on coolant selection, system compatibility and reliable O&M delivery. Amer C&C Solution addresses all three dimensions. PCB protective coatings mitigate corrosion risks; three series of coolants fit diverse deployment scenarios. Server cleaning agents and fluid‑recycling services guarantee stable full‑lifecycle operation.
YT Series Immersion Coolant
Excellent insulating performance, near‑zero volatility, zero ozone‑depletion potential. Delivers safety and long‑term stability for immersion liquid cooling, service life over 8 years.
Breakdown voltage: 62 KV │ Service life: 8+ years │ Compatible with 15+ material types

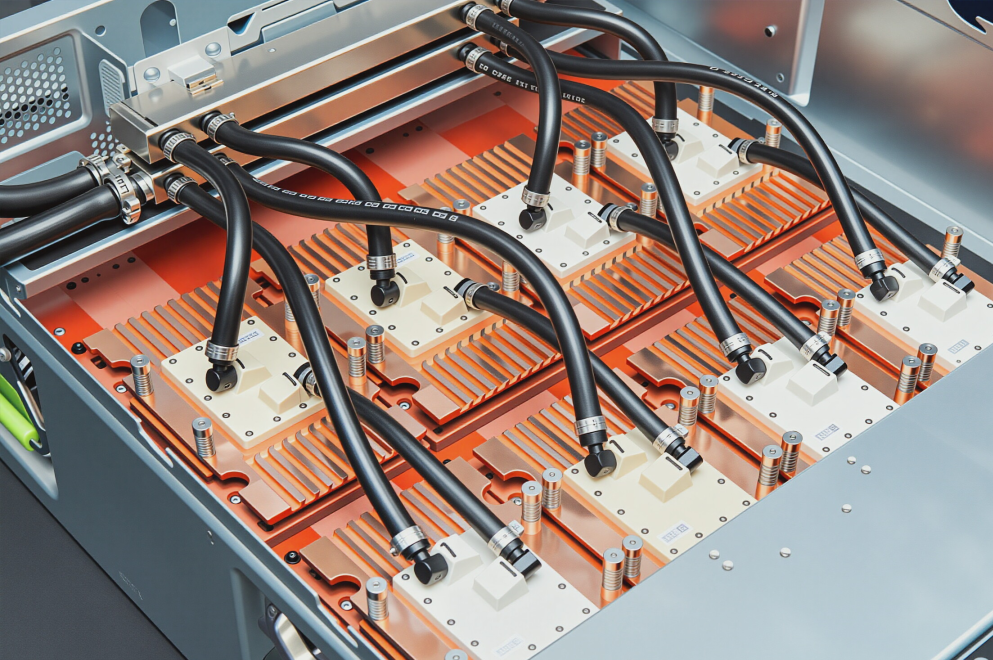

CP35 Cold‑Plate Coolant
Adopts ultra‑purification filtration to achieve extremely low conductivity. Enables efficient heat dissipation while substantially lowering electrical‑conduction risks.
Conductivity: 80 μs/cm │ Freezing point: ‑36 °C │ Thermal conductivity: 0.41 W/m·k
Compatibility test: 14‑day ageing at 80 °C, no corrosion observed on tested materials.
YT108 Fluorocarbon Coolant
Non‑flammable with no flash point, high dielectric breakdown voltage. Low vapor pressure reduces equipment sealing requirements, suitable for liquid‑cooling scenarios with strictest safety standards.
Breakdown voltage: 48 KV │ Low vapor pressure │ Non‑flammable
LD630 Long‑Life PCB Protective Coating
Developed specifically for immersion liquid‑cooling systems. Highly compatible with coolants. Forms durable protective film over electronic components after curing to effectively prevent corrosion.
IP68 waterproof │ UL‑94 V‑0 flame retardant │ Level‑0 adhesion │ Wide operating temperature: ‑40~160 °C
Baolijing‑T Special‑Purpose Server Cleaner
Water‑free formulation with high electrical insulation. Powerful dissolving capacity for non‑polar grease. No conductive or corrosive risks during cleaning. Supports immersion and manual wiping.
Density: 0.75 g/cm³ │ Flash point: 45 °C │ Colorless liquid
Coolant Recycling Service
Spent coolant counts as hazardous waste; third‑party disposal costs reach CNY 4000‑12000 per ton. Amer provides free testing, free fluid top‑up and free recycling. Fluid leasing option is available, with Amer taking full disposal responsibility.
Three free services │ Up to 10‑year guarantee │ Leasing model available
Metal‑Working Solutions for Liquid‑Cooling Components
Key liquid‑cooling hardware includes cold plates, water distributors, copper busbars, copper pipelines and stainless‑steel fittings, mostly made of copper, stainless steel and aluminium. Improper machining leads to oxidation, discoloration and corrosion failure, damaging sealing and heat‑transfer efficiency. Amer delivers matched metal‑working fluid solutions for liquid‑cooling parts:
01 Copper busbars & copper pipelines:
Amer SF353 copper‑specific cutting coolant. Effectively prevents copper oxidation, avoids copper soap precipitation and keeps machines clean.
02 Stainless‑steel & titanium alloy fittings & valves:
Amer C26F stainless‑steel extreme‑pressure additive, Amer C15 stainless‑steel cutting oil. Premium extreme‑pressure anti‑wear formula extends tool service life and delivers superior surface finish.
03 Aluminium, carbon steel and general profiles:
Amer SF19‑LY eco‑friendly cutting coolant. High‑oil micro‑emulsion balancing cooling and lubrication, resistant to corrosion and hard‑water conditions.
From precision machining of cold plates and copper busbars, to coolant selection, system compatibility and full‑lifecycle maintenance, Amer’s combined “C&C + metal‑working fluid” portfolio covers the complete value chain: component manufacturing through long‑term liquid‑cooling system operation.
Proven Field‑Verified Performance
CPU performance improved by 40%=> Operating PUE as low as 1.08=> 7‑year continuous operation in liquid‑cooling data center => Energy consumption reduced by 48%=> Zero coolant top‑up required during runtime => Coolant service life over 8 years
Real‑world results speak louder than promotion.
Case: Immersion liquid‑cooling data center of a national‑level Specialized, Refined, Differential & Innovative “Little Giant” enterprise
This customer develops and manufactures smart products and supplies global retailers including Walmart and Aldi. After deploying Amer YT198 immersion coolant, servers run fully immersed without overheating or electrical conduction; hardware materials remain well‑preserved. The project acceptance criterion sets minimum service life above six years.
The success of liquid‑cooling projects depends not merely on cooling efficiency. More critically, coolants must deliver consistent performance across multi‑material environments, diverse scenarios and geographically dispersed sites.
Backed by its global supply network and innovative product portfolio, Amer ensures consistent delivery with identical formulations, standards and validation results. We help data‑center customers achieve low‑energy operation, broad material compatibility and extended service lifetime.
Feel free to contact us, Amer technical team is ready to deliver customized solution recommendations for your project.
